SipFlow Deep Dive: Signaling Capture That Scales to Clusters

When a call misbehaves, the CDR tells you what happened and the media counters tell you how it sounded. Neither tells you exactly what was on the wire. For that you need packet-level signaling — captured continuously, indexed by call, queryable weeks later, and cheap enough to leave on permanently.

That’s SipFlow.

Capture Without a Tap

SipFlow mirrors every SIP message and RTP packet from inside the proxy — no port mirroring, no external capture box, no PCAP files to fetch. Each packet is stored with:

• Microsecond timestamp
• Source/destination IP:port
• Message type (SIP vs RTP)
• Full payload

Packets land in a compact binary format (ZSTD-compressed) with the on-disk layout under your control:

[sipflow]
type = "local"
root = "/data/sipflow"
subdirs = "hourly"        # none | daily | hourly
flush_count = 500
flush_interval_secs = 10

The Index: FlowDB

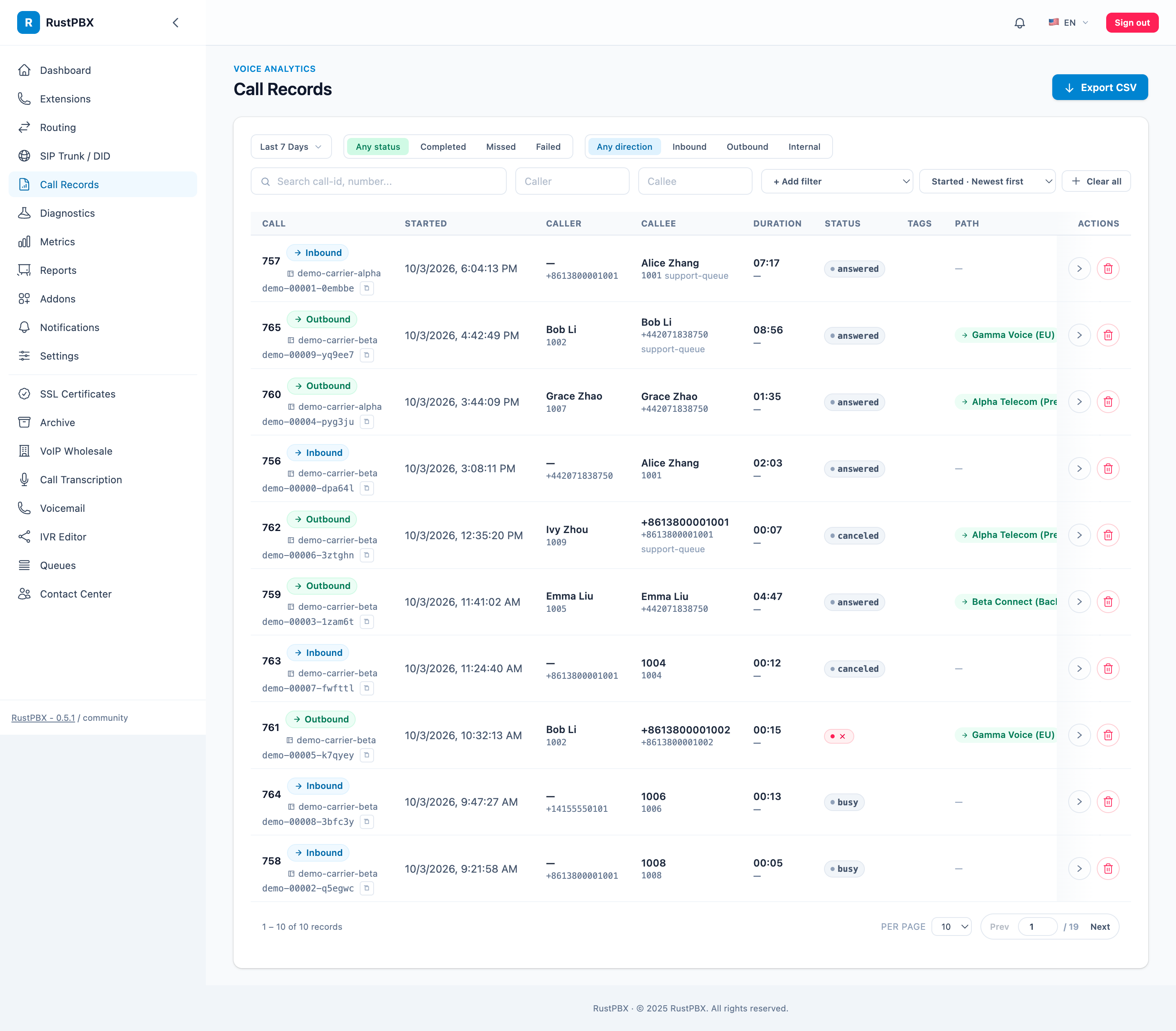

Raw packets are useless without fast lookup. SipFlow maintains a FlowDB LSM-tree index that maps call_id → packet offsets, so a query for “show me call X” touches the index, not the whole archive. The SQLite side carries call metadata and message references; the binary side carries payloads. Query by call id and get the whole ladder back.

Cluster Mode: Consistent Hashing

One capture node becomes a bottleneck, so SipFlow scales out. In cluster mode, capture traffic is routed by consistent hashing on call_id — every packet of a call goes to the same capture node, so ladders stay complete even though the proxies are many:

[sipflow.remote]
flush_interval_secs = 5

[[sipflow.remote.nodes]]
udp = "10.0.0.2:6060"
http = "http://10.0.0.2:6060"

Deploy the standalone sipflow binary (src/bin/sipflow) as the capture server. Because the hash is on the call id, adding a node rebalances a share of calls, not all of them.

Backpressure and Loss Reporting

Capture must never take down the call path. SipFlow uses bounded queues with backpressure and reports per-IP loss when it can’t keep up. That’s the operational contract: under extreme load you lose some capture and get told exactly whose traffic was dropped, rather than the process growing without limit or stalling calls.

Metrics distinguish the pipeline stages (sqlite_* alongside sipflow_*), so you can see whether a bottleneck is ingest, flush, or index — not just “capture is slow.”

Getting Audio Back

Signaling capture includes RTP, so a call’s media can be reconstructed into a WAV for playback — useful when a recording was disabled but the evidence is needed anyway. Media export can target local storage or object storage with presigned downloads.

Retention and Offload

• Subdirs by hour/day keep directory sizes manageable and make pruning a filesystem operation.
• Object storage upload offloads long-term retention; local storage keeps the hot window.
• Pair with the archive addon for CSV/archive exports of call records when compliance wants structured data, not packets.

When to Reach for SipFlow

Guides: the SipFlow addon and SipFlow at scale.
